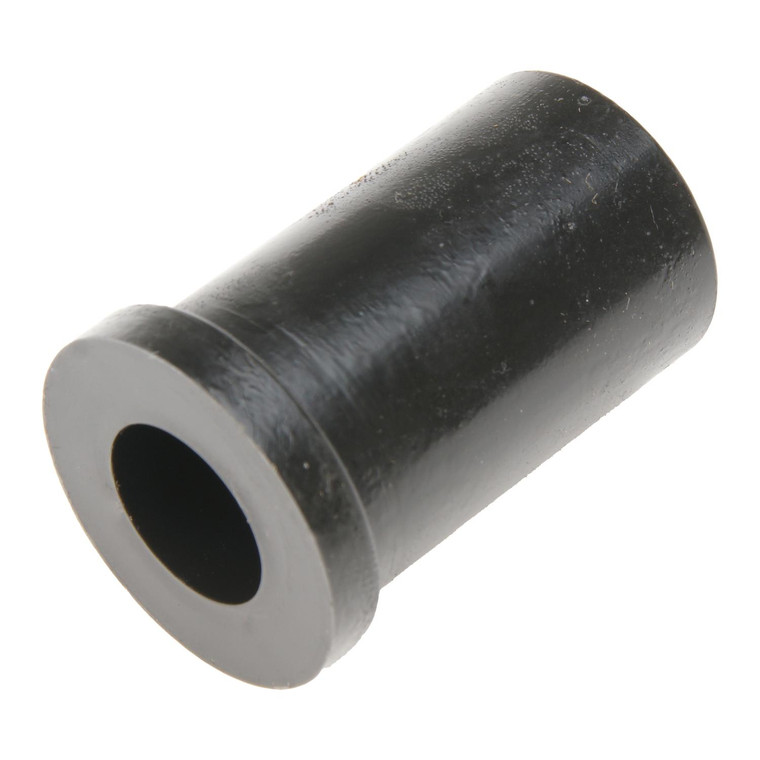

HB-1102 Rubber Harris Bushing
- 2 Required Per Eye
- Outside Diameter (A) = 30mm (1.181")
- Inside Flange Collar to End of Bushing Length (B) = 41mm (1.61")
- Total Bushing Length (C) = 47mm (1.85")
- Inside Diameter (D) = 18mm (.709")
- Flanged Collar Diameter (E) = 35mm (1.38")
- OEM# = 9038518012
- Fits Toyota Leaf Spring Shackle Hanger
- Sold Individually
Not the bushing you need? Click here to see all of the leaf spring bushings available
- Outside Diamter:
- 30mm (1.181)
- Inside Flange to End:
- 41mm (1.61)
- Total Length:
- 47mm (1.85)
- Inside Diameter:
- 18mm (.709)
- Flange Diameter:
- 35mm (1.38)
- Bushing Style:
- Rubber Harris
