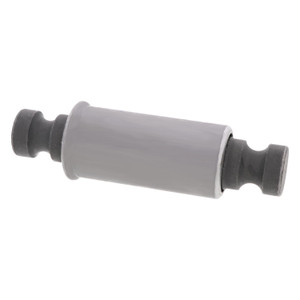

RB-166 Pin Style Steel Encased Rubber Bushing
- Outside Diameter (A) = 48mm (1.89")
- Outer Metal Shell Length (B) = 98.5mm (3.88")
- Total Bushing Length (C) = 183mm (7.2")
- Pin Groove Center to Groove Center (E) = 151mm (5.94")
- Pin Diamter (F) = 27mm (1.063")
- OEM# = 10QK240M / 10QK240M2
- Sold Individually
Not the bushing you need? Click here to see all of the leaf spring bushings available
- Outside Diamter:
- 48mm (1.89)
- Outer Shell Length:
- 98.5mm (3.88)
- Total Length:
- 183mm (7.2)
- Pin Diameter:
- 27mm (1.063)
- Pin Groove to Groove:
- 151mm (5.94)
- Bushing Style:
- Pin Style
