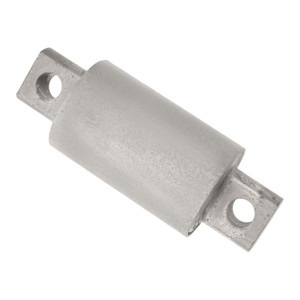

RB-175 Tab Style Steel Encased Rubber Bushing
- Outside Diameter (A) = 45mm (1.772")
- Outer Metal Shell Length (B) = 3-13/16"
- Total Bushing Length (C) = 6-3/4"
- Tab Hole Diameter (D) = 5/8"
- Tab Hole Center to Tab Hole Center (E) = 5-3/8"
- Tab Thickness Width (F) = 3/4"
- Tab Thickness Height (F) = 1-3/16"
- Hendrickson OEM# = 37732 / 37732000 / 37732-000
- Freightliner OEM# = A1611944 / A16-11944 / HBU541 / HBUS41 / HR1 HBU541 / HR1HBU541 / HRI HBU541 / HRI HBUS41 / HRIHBU541 / HRIHBUS41
- Euclid# = E9874 / E-9874
- Meritor# = R309874
- Sold Individually
Not the bushing you need? Click here to see all of the leaf spring bushings available
- Outside Diamter:
- 45mm (1.772)
- Outer Shell Length:
- 3-13/16 (3.8125)
- Total Length:
- 6-3/4 (6.75)
- Tab Hole Diameter:
- 5/8 (.625)
- Tab Hole to Hole:
- 5-3/8 (5.375)
- Tab Thickness Width:
- 3/4 (.75)
- Tab Thickness Height:
- 1-3/16 (1.1875)
- Bushing Style:
- Tab Style
