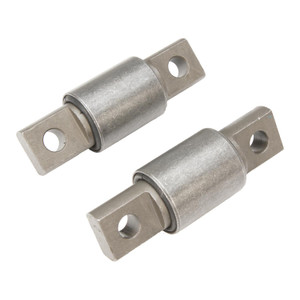

RB-234 Tab Style Steel Encased Rubber Bushing
- Outside Diameter (A) = 2-1/2"
- Outer Metal Shell Length (B) = 3-3/16"
- Total Bushing Length (C) = 7-1/2"
- Tab Hole Diameter (D) = 3/4"
- Tab Hole Center to Tab Hole Center (E) = 5-11/16"
- Tab Thickness Width (F) = 7/8"
- Tab Thickness Height (F) = 1-13/16"
- Freightliner OEM# = 1613962000 / 16-13962-000 / A1613962000 / A16-13962-000
- Sold as a Pair
Not the bushing you need? Click here to see all of the leaf spring bushings available
- Outside Diamter:
- 2-1/2 (2.5)
- Outer Shell Length:
- 3-3/16 (3.1875)
- Total Length:
- 7-1/2 (7.5)
- Tab Hole Diameter:
- 3/4 (.75)
- Tab Hole to Hole:
- 5-11/16 (5.6875)
- Tab Thickness Width:
- 7/8 (.875)
- Tab Thickness Height:
- 1-13/16 (1.8125)
- Bushing Style:
- Tab Style
